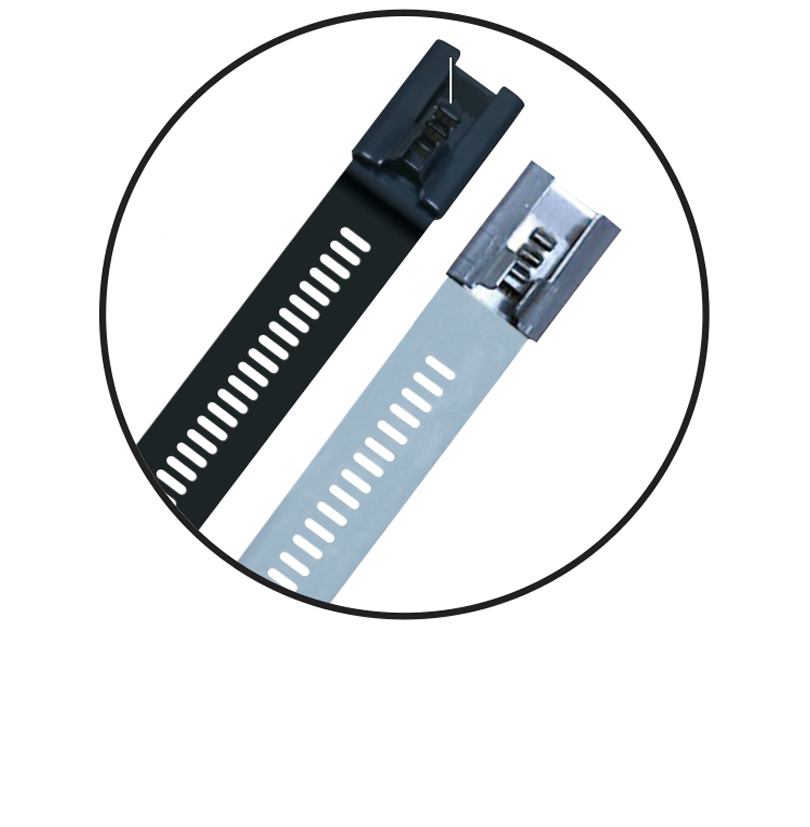

Ladder Cable Ties

Hayata Ladder Cable Ties can be used in virtually all indoor, outdoor and underground (including direct burial) applications. These high-quality ties, available coated or uncoated, are well-suited for network bundling of data and power cables. Their high strength, non-flammability and rounded edges provide the highest level of secure support for network cables.

Ladder Ties are especially useful when you want controlled, repeatable tightening and a very secure hold. One advantage of the ladder design is that the locking positions are defined by the slots, so the tie can provide a very predictable mechanical engagement.

Compared with a roller-ball tie, a ladder tie is often selected where positive mechanical locking, vibration resistance or controlled tensioning is particularly important.

All coated ties are 316 grade stainless steel for excellent resistance to temperature extremes, corrosion, weather, chemicals, salt sprays and UV radiation. Available in 250 Lb and 450 Lb tensile strength.

Features

• Non-toxic & halogen-free
• No water absorption
• Non-flammable
• Uncoated temperature range: -112°F (-80°C) to 1000°F (538°C)
• Coated temperature range: -112°F (-80°C) to 302°F (150°C)
• Excellent chemical and UV resistance
• Can be used for air handling spaces
• Radiation resistance: 2 x 108 rads
• Sharp edges and burrs have been removed to protect installation and bundle
• ABS type approved, DNV & cUL

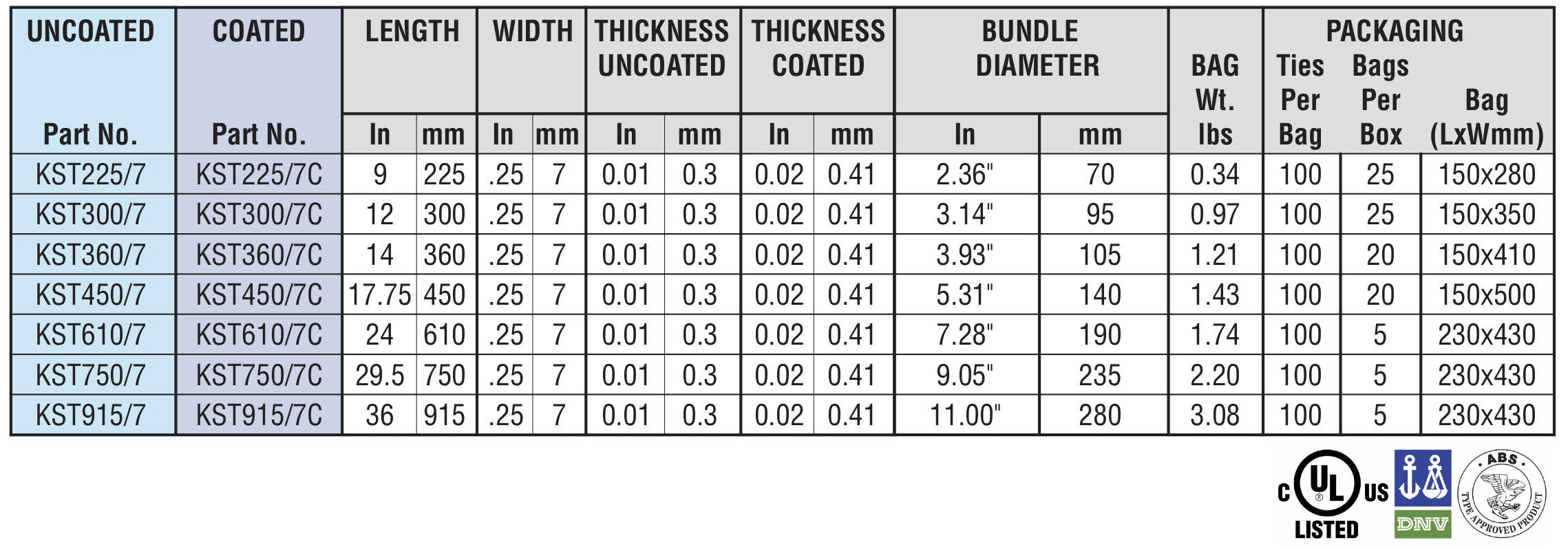

Ladder Ties • 250 Lb. Standard • 316 SS – Specifications

Ladder Ties • 450 Lb. Standard • 316 SS – Specifications
