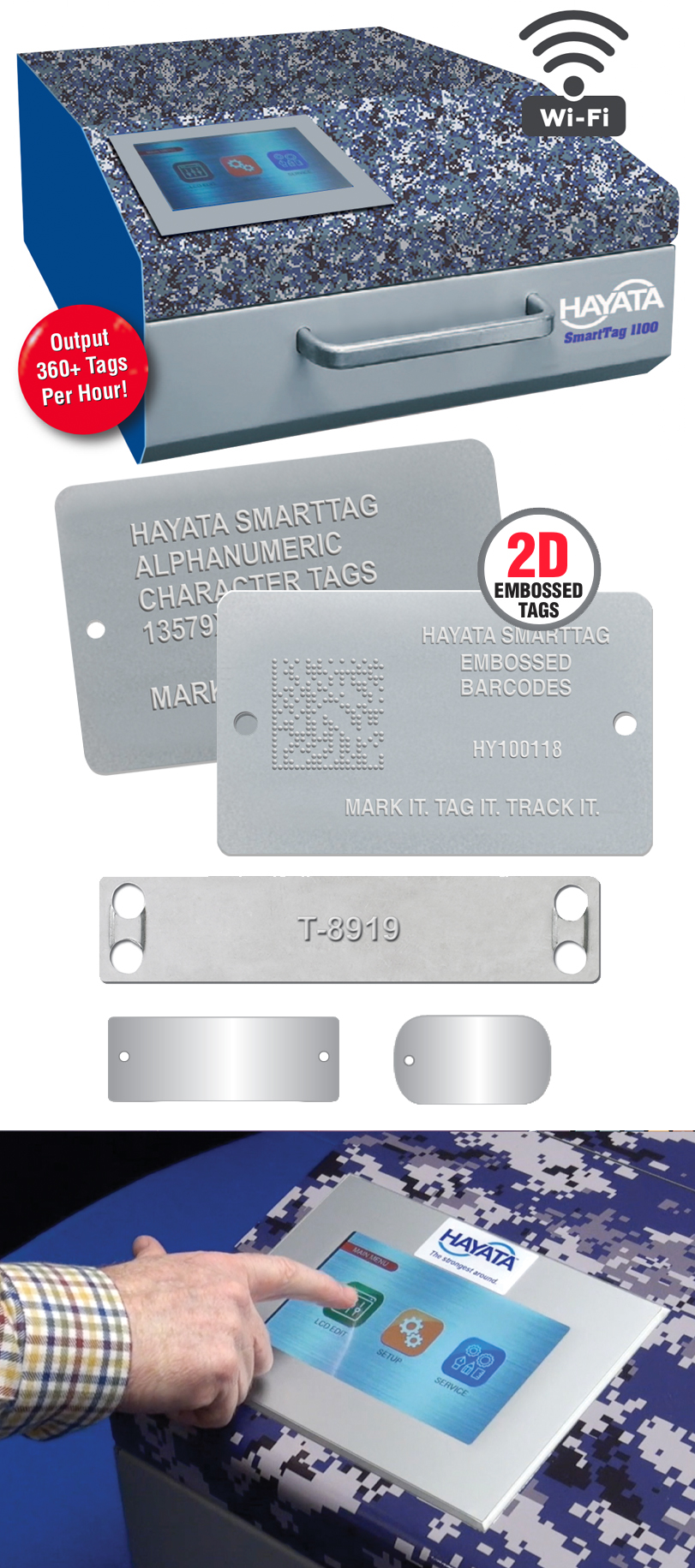

SmartTag™ 1100 - Automated Embossing Machine

The Hayata SmartTag^™ 1100 is a portable, self-contained metal tag embosser designed to output a variety of Hayata tag sizes. This unit, which comes in 6 models, embosses alphanumeric characters on stainless steel tags and can also output 2D data barcodes. With its new interface and management features, the SmartTag 1100 is ideal for low- to medium-volume tag output operations that output specific tags in quantity.

Multiple Connection Options
The Hayata SmartTag 1100 can be connected to a computer via Wi-Fi or USB/Ethernet cable to load tag data and manage production. The intuitive Hayata touchscreen also allows direct manual entry.

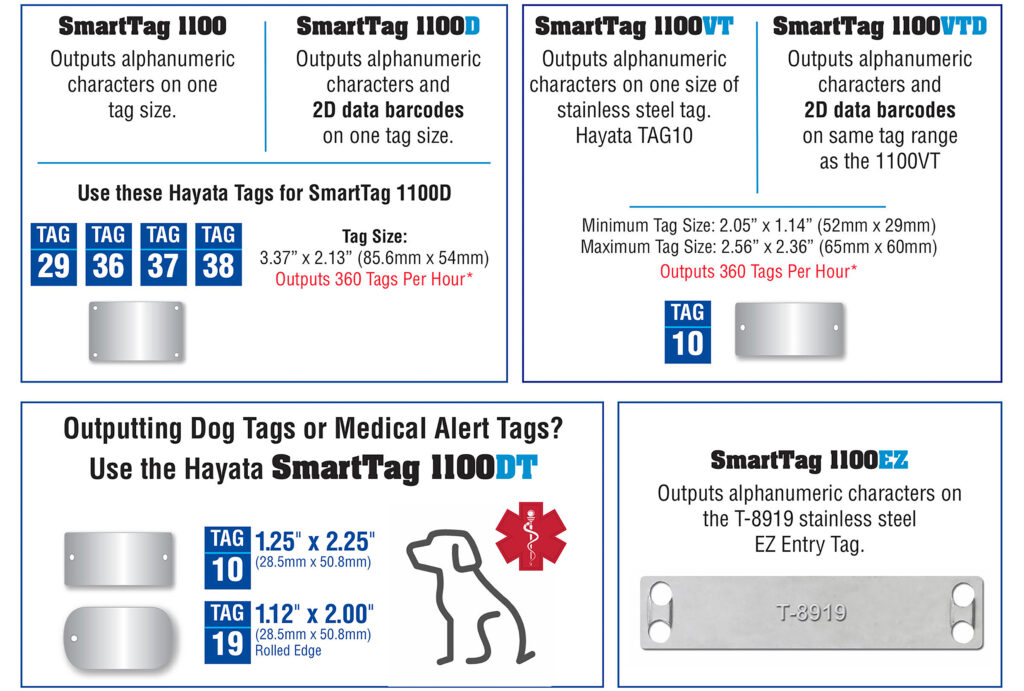

SmartTag™ 1100 Machine Options

• SmartTag 1100 – Outputs alphanumeric characters on one tag size
• SmartTag 110OD – Outputs alphanumeric characters and 2D data barcodes on one tag size.
• SmartTag 110OVT – Outputs alphanumeric characters on one size of stainless steel tag (Hayata TAG10).
• SmartTag 110OVTD – Outputs alphanumeric characters and 2D data barcodes
• SmartTag 1100EZ – Outputs alphanumeric characters on the Hayata T-8919 stainless steel EZ Entry Tag.

Features

• Wi-Fi-enabled
• Can output standard alphanumeric characters and 2D data barcodes (1100D Model)
• Password-protected for higher data security
• Remote access & management
• USB & Ethernet ports
• Built-in touchscreen for easy user interface
• Easy-to-use software
• Built-in carrying handle

Remote Access & Management

Web services: Using a network-connected computer or tablet, remote set-up and operation can be managed via the web or through a VNC (Virtual Networking Computing) client.

Data transfer: Data import / export and software updates can be handled through any device connected to the SmartTag 4500 by using FTP (File Transfer Protocol).

SPECIFICATIONS

Plate & Feeder / Marking

Tag Output/Hour:   Up to 360 – Based on single-line 8-character tag.

Tag Materials:        Stainless steel or aluminum.

Thickness:              0.3556 ÷ 0.70 mm – 0.014 ÷ 0.0275 in.

Input Hopper:           Up to 250 plates capacity (.4 mm / 0.0157). Automatic feed only.

Output Hopper:      External collection tray.

Wheel Capacity:     60 slot

Type Set:                 Multiple character configurations.

Embossing Area:    From top edge – 2.56 in / 65 mm. Bottom edge no-print zone – .157 in / 4 mm.

Communications & Software

Interface:                   USB 2.0 port (device and host), Ethernet, Wi-Fi.

Software:                   Linux-based self-enclosed software. PC application software Windows 7/8/10.

Hardware

System Hardware:  CPU Arm Cortex-A8 / RAM 256 MB, with flash-disk and file system Linux O.S.-based.

Power Supply:          100 – 117 – 220 – 230 or 240 Volts – 50 or 60 Hz.

Operating                  Temperature: 5 – 40 °C / 41 – 104 °F, relative humidity: 30% – 90% Environment: non-condensing.

Certifications:           UL, FCC, CE, RoHS.

Performance:          Varies based on number of characters, lines and if producing 2D barcode tags.

Select the SmartTag™ 1100 Model
That Best Fits Your Tagging Operation’s Requirements
