SmartTag™ 4500 - Automated Embossing Machine

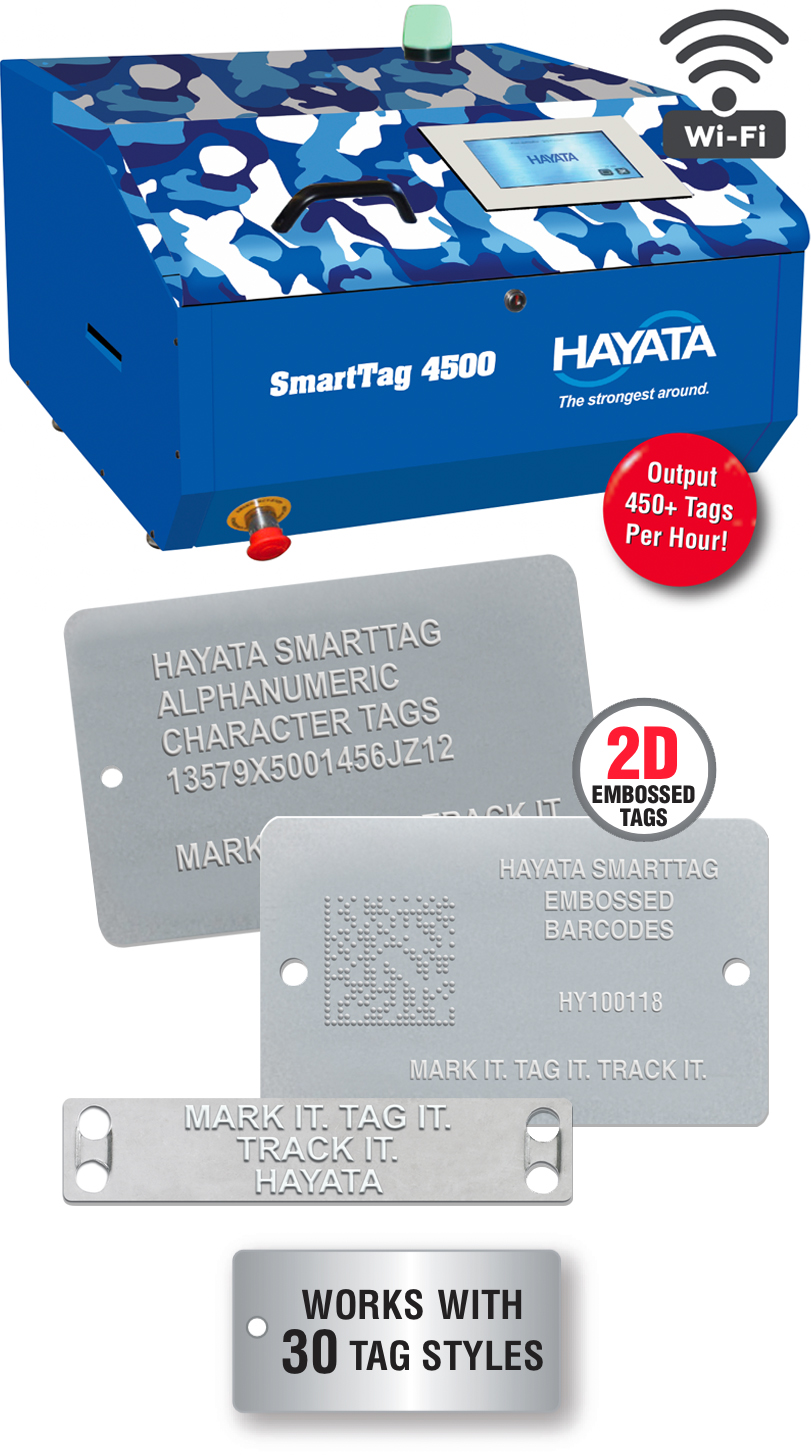

The Hayata SmartTag^TM 4500 is the KING of metal tag embossers! Designed to output a variety of Hayata tag sizes and materials, this rugged unit can emboss alphanumeric characters and 2D data barcode tags. Now 10% faster than previous models, the SmartTag 4500 features a touchscreen interface and new management features. It’s ideal for medium- to high-volume tagging operations.

Multiple Connection Options
The Hayata SmartTag 4500 can be connected to a computer via Wi-Fi or USB/Ethernet cable to load tag data and manage production. The intuitive Hayata touchscreen also allows direct manual entry.

SmartTag™ 4500 Machine Options

• SmartTag™ 4500 – Outputs alphanumeric characters on a variety of tag sizes, thicknesses and materials.
• SmartTag™ 4500D – Outputs alphanumeric characters and 2D data barcodes on a variety of tag sizes, thicknesses and materials.

Features

• Wi-Fi-enabled
• Can output standard alphanumeric characters and 2D data barcodes
• Password-protected for higher data security
• Remote access & management
• USB & Ethernet ports
• 250-tag capacity auto-load and unload – optional FIFO technology or side eject
• Large selection of fonts
• Built-in touchscreen for easy user interface
• Easy-to-use software

Remote Access & Management

Web services: Using a network-connected computer or tablet, remote set-up and operation can be managed via the web or through a VNC (Virtual Networking Computing) client.

Data transfer: Data import / export and software updates can be handled through any device connected to the SmartTag 4500 by using FTP (File Transfer Protocol).

SPECIFICATIONS

Plate & Feeder / Marking

Tag Output/Hour:   Up to 450 – Based on single-line 8-character tag.

Tag Materials:        Stainless steel, carbon steel, aluminum, copper and brass.

Tag Size Range:      Rectangular: Width: 1.18 – 4.53 in / 30 – 115 mm / Height: 0.83 – 3.54 in 21 – 90 mm.

Tag Size Range:      Round Tag Size Diameter Range: 0.5 in / 38.1 mm.

Thickness:                0.015 ÷ 0.0354 in / 0.4 ÷ 0.9 mm.

Input Hopper:           Up to 250 plates capacity (0.015 in. / 4 mm). Automatic feed only

Output Hopper:       Up to 250 plates capacity. Options – FIFO or side eject.

Wheel Capacity:     Standard 60 slot or optional high-capacity 90 slot.

Type Set:                 Multiple character configurations available.

Embossing Area:    From top edge – 2.56 in / 65 mm. Bottom edge no-print zone – .157 in / 4 mm.

Communications & Software

Interface:                   USB 2.0 port (device and host), Ethernet, Wi-Fi.

Software:                   Linux-based self-enclosed software. PC application software Windows 7/8/10.

Hardware

System Hardware:  CPU Arm Cortex-A8 / RAM 256 MB, with flash-disk and file system Linux O.S.-based.

Power Supply:          100 – 117 – 220 – 230 or 240 Volts – 50 or 60 Hz.

Operating                  Temperature: 5 – 40 °C / 41 – 104 °F, relative humidity: 30% – 90% Environment: non-condensing.

Certifications:           UL, FCC, CE, RoHS.
